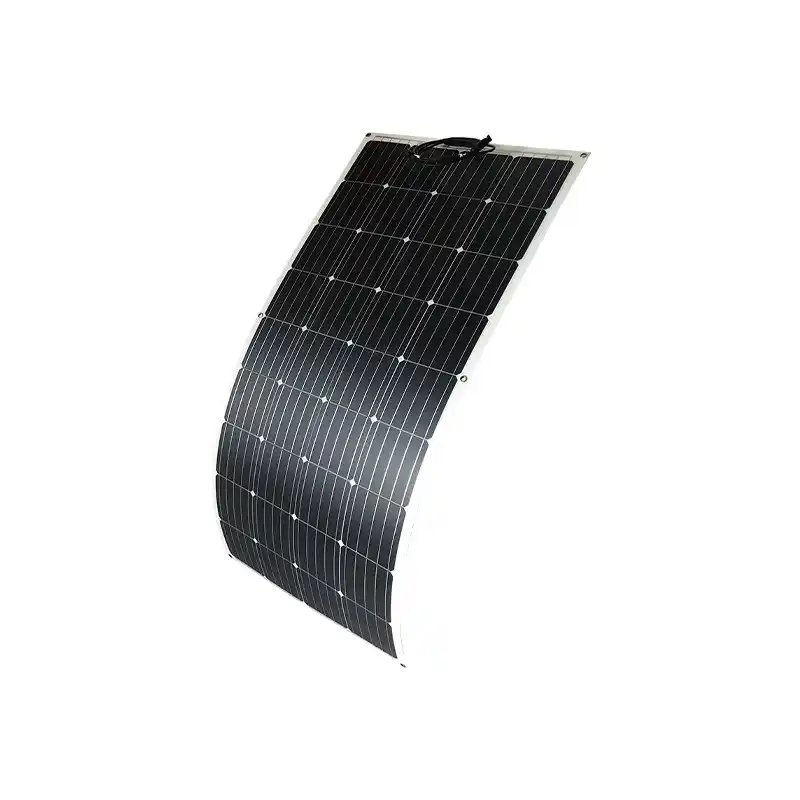

Flexible半柔200W

Product Detail

Electrical Performance:

Max Power(Pmax):200W

Open Circuit Voltage(Voc)：43.2V

Short circuit current(lsc)：5.76A

Max power voltage（Vmp)：36V

Max power voltage（lmp）：5.56A

Component Efficiency（%）：23%

Power Tolerance：0~+3W

Operating temperature range：-40℃~+85℃

Temperature coefficient of short circuit current：+0.048%/℃

Open circuit voltage temperature coefficient：-0.29%/℃

Max power temperature coefficient：-0.31%/℃







Mechanical Specification：

Cell Type ：TOPcon（tunnel Oxide Passivating contacts)

No.of Cells : 64(4*16)

Component Dimensionc : 1190*870*2mm

Component Weight : 2.6KG

Junction Box : IP68, 1bypass diodes

Connector  : MC4
