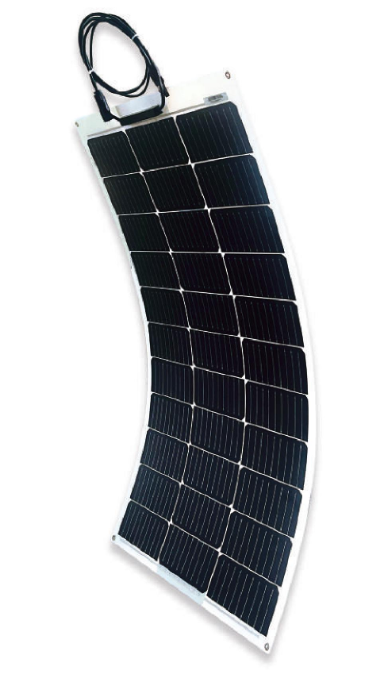

Flexible半柔150W

Product Detail

Electrical Performance:

Max Power(Pmax):150W

Open Circuit Voltage(Voc)：21.4V

Short circuit current(lsc)：8.50A

Max power voltage（Vmp)：18V

Max power voltage（lmp）：8.30A

Component Efficiency（%）：23%

Power Tolerance：0~+3W

Operating temperature range：-40℃~+85℃

Temperature coefficient of short circuit current：+0.048%/℃

Open circuit voltage temperature coefficient：-0.29%/℃

Max power temperature coefficient：-0.31%/℃







Mechanical Specification：

Cell Type ：TOPcon（Tunnel Oxide Passivating contacts)

No.of Cells : 36(3*11)

Component Dimensionc : 1140*660*2mm

Component Weight : 1.8KG

Junction Box : IP68, 1bypass diodes

Connector  : MC4
