FC-Y-G-144M-540W~580W

Product Detail

Electrical Performance:

Max Power(Pmax):550W~580W

Open Circuit Voltage(Voc)：49.75V

Short circuit current(lsc)：13.93A

Max power voltage（Vmp)：41.80V

Max power voltage（lmp）：13.16A

Component Efficiency（%）：23%

Power Tolerance：0~+3W

Operating temperature range：-40℃~+85℃

Temperature coefficient of short circuit current：+0.048%/℃

Open circuit voltage temperature coefficient：-0.29%/℃

Max power temperature coefficient：-0.31%/℃







Mechanical Specification：

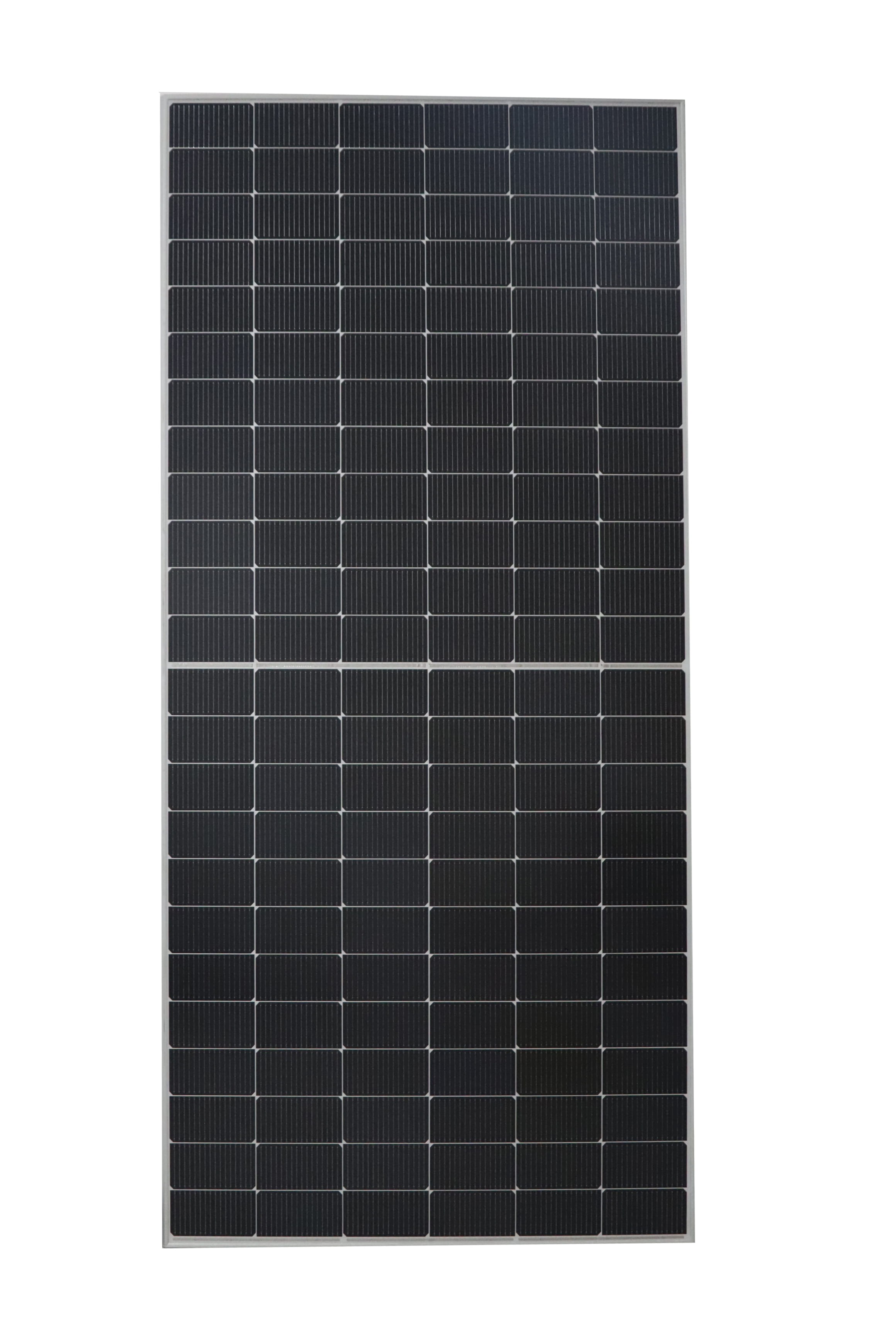

Cell Type ：TOPcon（tunnel Oxide Passivating contacts)

No.of Cells : 144(6*24)

Component Dimensionc : 2279*1134*30mm(无C面）

Component Weight : 28.5KG

Front Cover Single Glass : 3.2mm tempered glass；Frame：anodized aluminum alloy

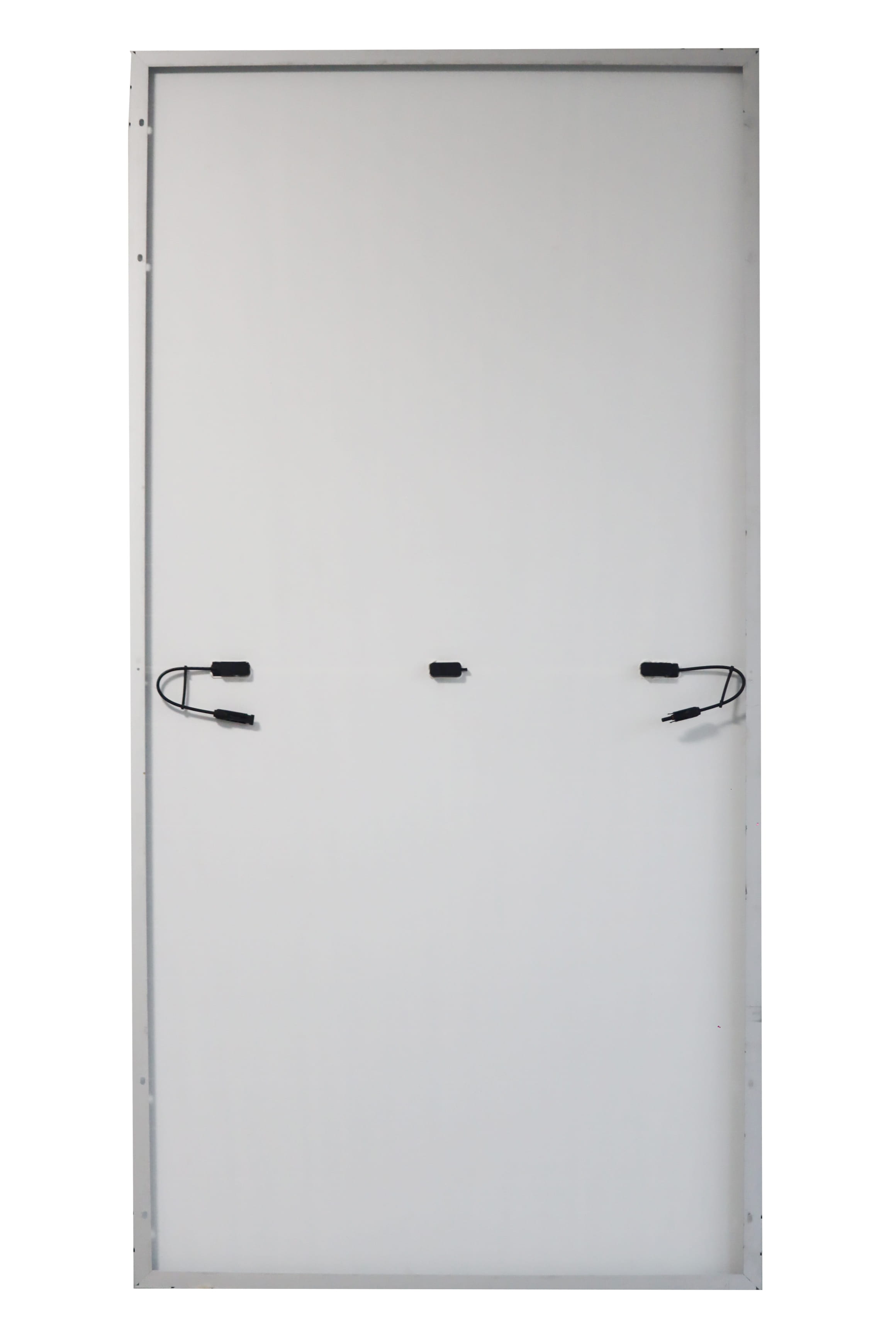

Junction Box : IP68,3bypass diodes

Connector  : MC4
