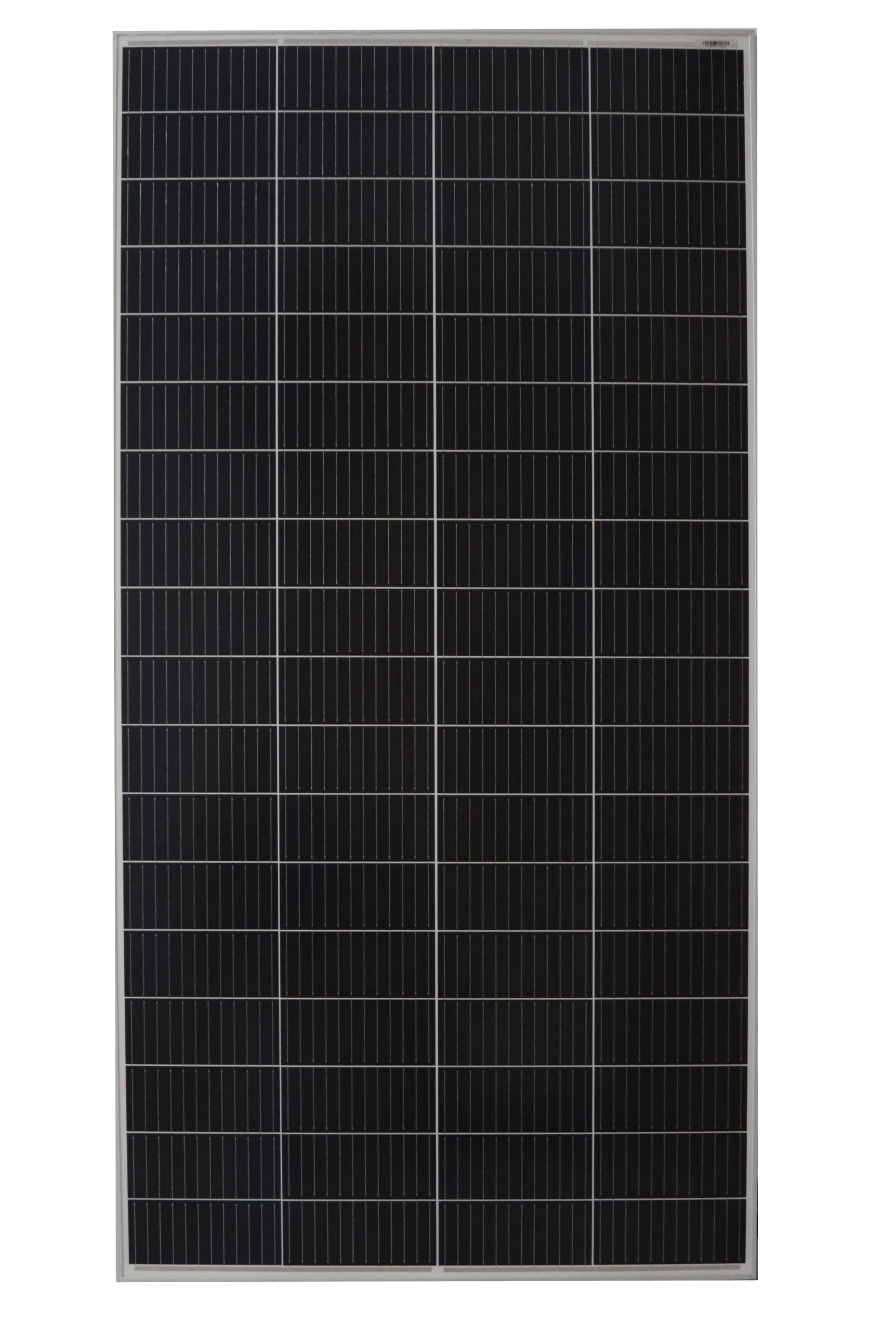

FC-Y-G-120M-300W

Product Detail

Electrical Performance:

Max Power(Pmax):300W

Open Circuit Voltage(Voc)：21.20V/42.40V

Short circuit current(lsc)：16.96A/8.48A

Max power voltage（Vmp)：18V/36V

Max power voltage（lmp）：16.67A/8.34A

Component Efficiency（%）：23%

Power Tolerance：0~+3W

Operating temperature range：-40℃~+85℃

Temperature coefficient of short circuit current：+0.048%/℃

Open circuit voltage temperature coefficient：-0.29%/℃

Max power temperature coefficient：-0.31%/℃







Mechanical Specification：

Cell Type ：TOPcon（tunnel Oxide Passivating contacts)

No.of Cells : 72(4*18)

Component Dimensionc : 1705*880*35mm/1134*1310*35mm

Component Weight : 16KG

Front Cover Single Glass : 3.2mm tempered glass；Frame：anodized aluminum alloy

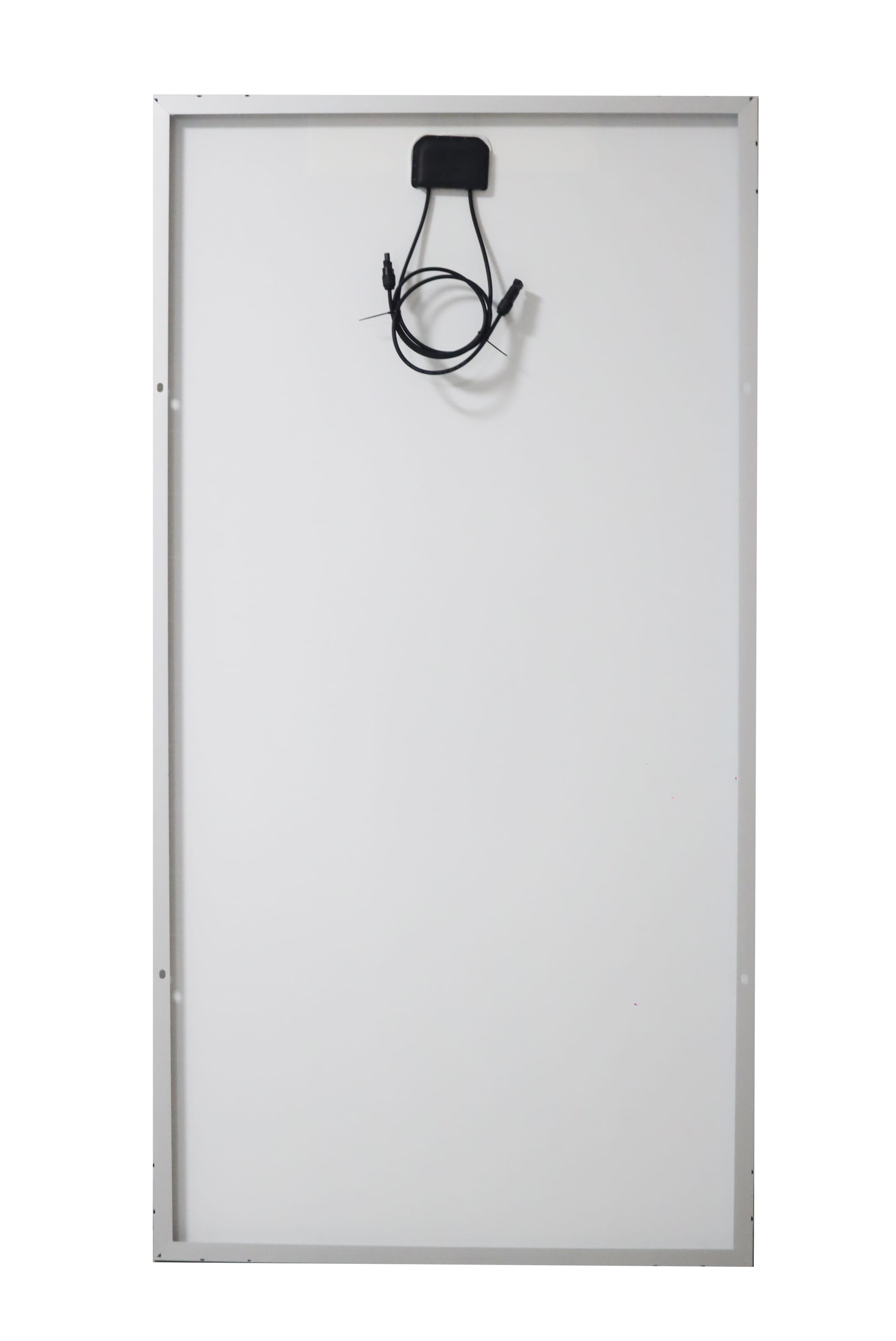

Junction Box : IP68,3bypass diodes

Connector  : MC4
