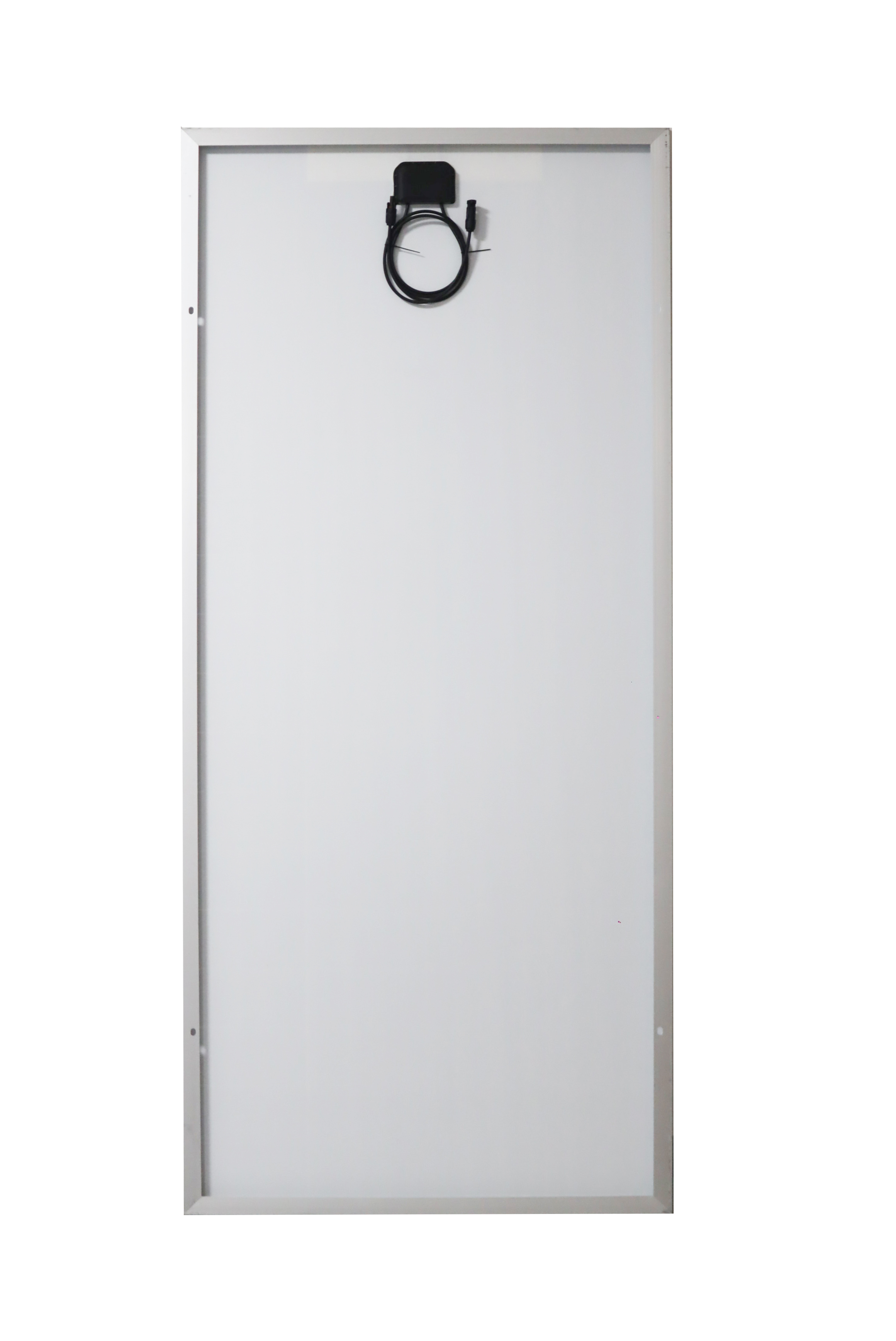

FC-Y-G-144M-450W

Product Detail

Electrical Performance:

Max Power(Pmax):450W

Open Circuit Voltage(Voc)：46.7V

Short circuit current(lsc)：12.93A

Max power voltage（Vmp)：41.76V

Max power voltage（lmp）：10.78A

Component Efficiency（%）：23%

Power Tolerance：0~+3W

Operating temperature range：-40℃~+85℃

Temperature coefficient of short circuit current：+0.048%/℃

Open circuit voltage temperature coefficient：-0.29%/℃

Max power temperature coefficient：-0.31%/℃







Mechanical Specification：

Cell Type ：TOPcon（tunnel Oxide Passivating contacts)

No.of Cells : 144(6*24)

Component Dimensionc : 2094*1038*30mm(无C面）

Component Weight : 22KG

Front Cover Single Glass : 3.2mm tempered glass；Frame：anodized aluminum alloy

Junction Box : IP68,3bypass diodes

Connector  : MC4
