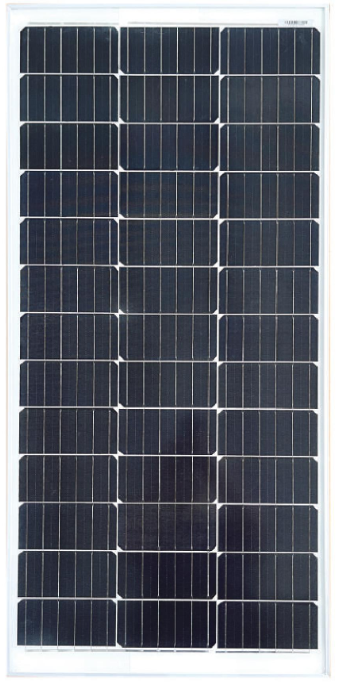

FC-Y-G-39M-100W

Product Detail

Electrical Performance:

Max Power(Pmax):100W

Open Circuit Voltage(Voc)：21.4V/

Short circuit current(lsc)：6.08A

Max power voltage（Vmp)：18V

Max power voltage（lmp）：5.56A

Component Efficiency（%）：23%

Power Tolerance：0~+3W

Operating temperature range：-40℃~+85℃

Temperature coefficient of short circuit current：+0.048%/℃

Open circuit voltage temperature coefficient：-0.29%/℃

Max power temperature coefficient：-0.31%/℃







Mechanical Specification：

Cell Type ：TOPcon（tunnel Oxide Passivating contacts)

No.of Cells : 39(3*13)

Component Dimensionc : 670*760*30mm/770*670*30mm

Component Weight : 5.6KG

Front Cover Single Glass : 3.2mm tempered glass；Frame：anodized aluminum alloy

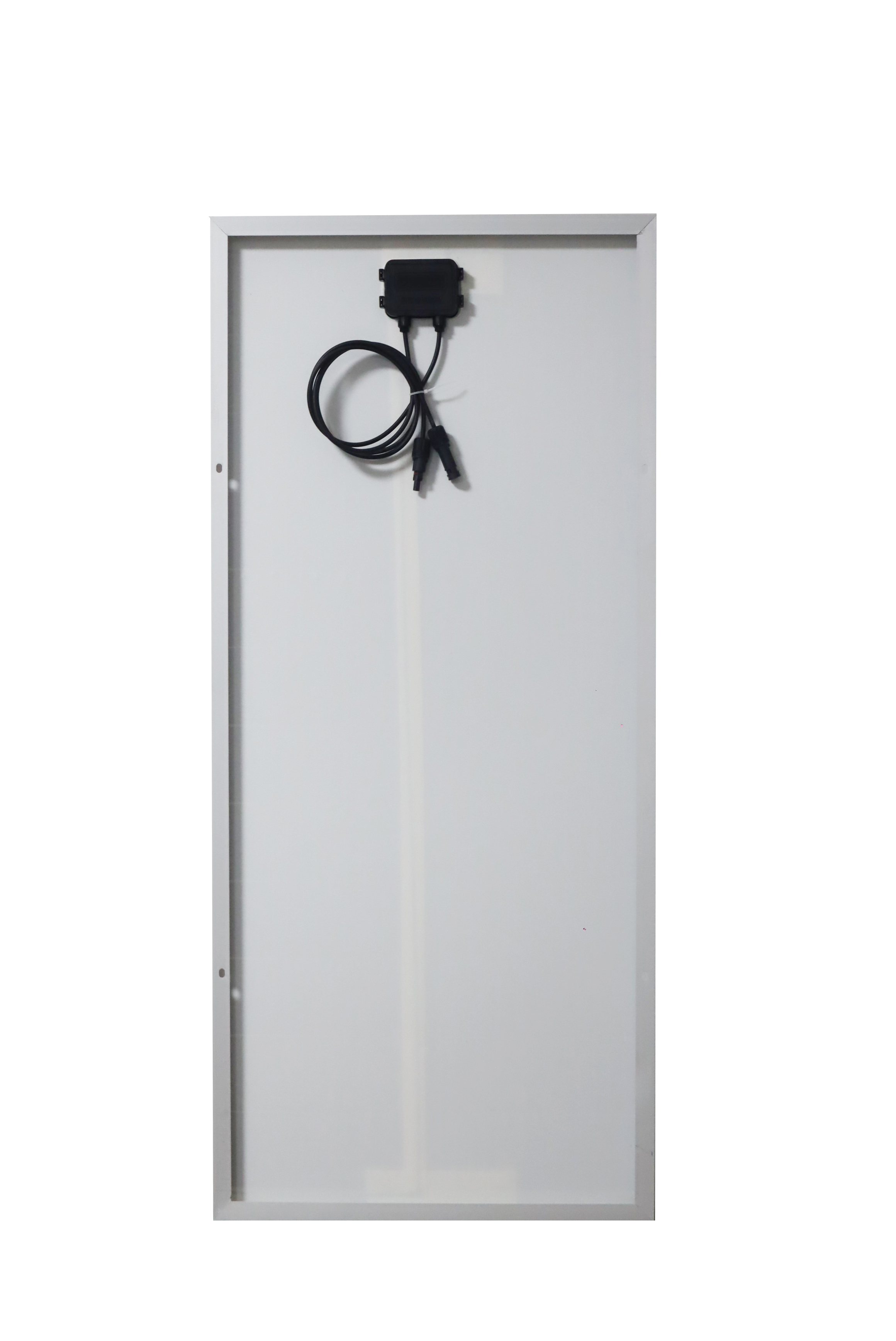

Junction Box : IP68,3bypass diodes

Connector  : MC4
